Spool take-ups are designed to operate in integration with wire drawing machines, ensuring controlled, regular, and safe winding of wire onto spools.

With their robust body structure, these machines can be manufactured in vertical or horizontal positions and in different configurations according to production requirements. The spool clamping system is designed as hydraulic or pneumatic depending on machine speed and spool capacity.

A vibration control system can be integrated as an optional feature. Different spool take-up solutions are available according to body structure and winding type.

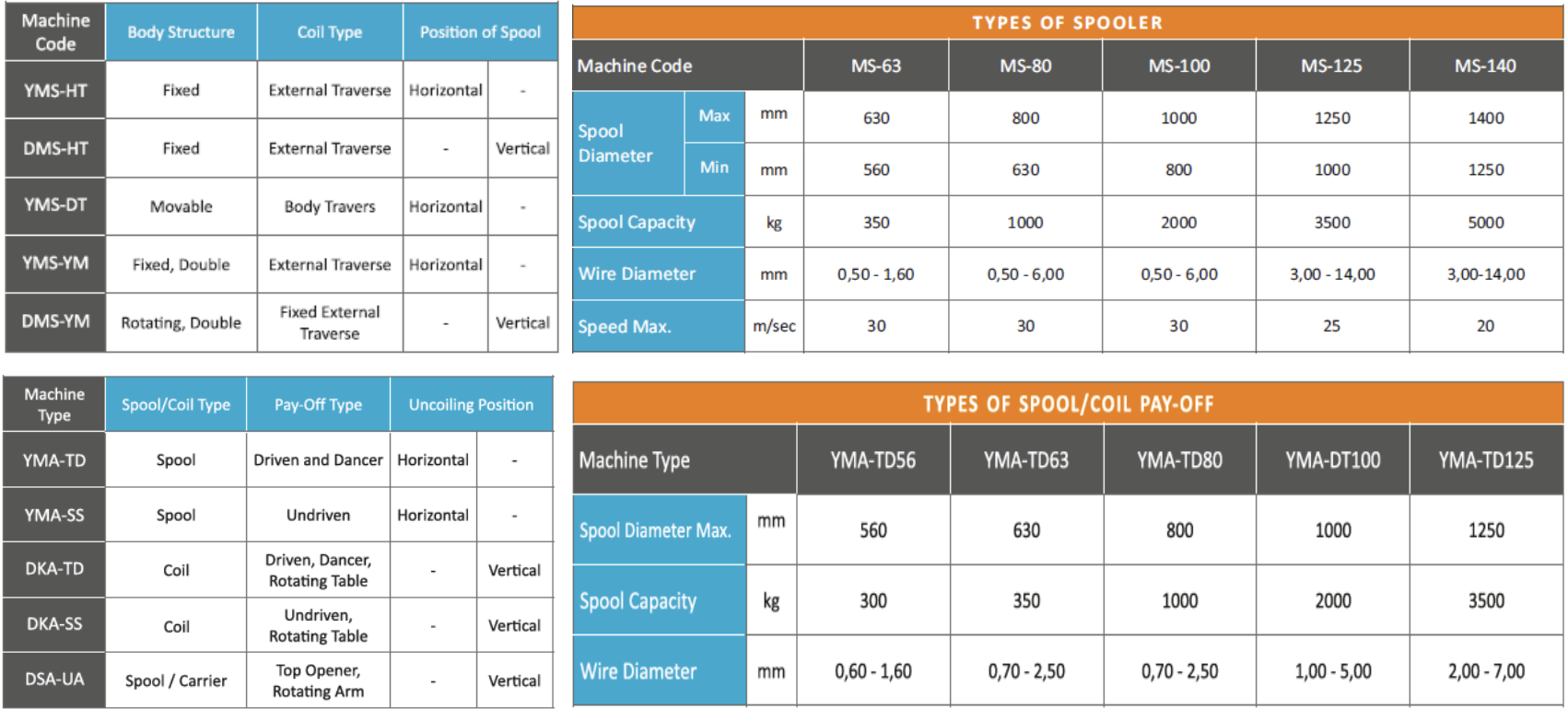

Technic Information

Spooler Models

Model

Max. spool Ø (mm)

Min. spool Ø (mm)

Capacity (kg)

Wire Ø (mm)

Max. speed (m/s)

MS-63

630

560

350

0.50–1.60

30

MS-80

800

630

1000

0.50–6.00

30

MS-100

1000

800

2000

0.50–6.00

30

MS-125

1250

1000

3500

3.00–14.00

25

MS-140

1400

1250

5000

3.00–14.00

20

Spooler Configurations

Machine code

Body structure

Traverse system

Spool position

YMS-HT

Fixed

External traverse

Horizontal

DMS-HT

Fixed

External traverse

Vertical

YMS-DT

Movable

Body traverse

Horizontal

YMS-YM

Fixed, double

External traverse

Horizontal

DMS-YM

Rotating, double

Fixed external traverse

Vertical

Spool/Coil Pay-Off Models

Model

Max. spool Ø (mm)

Capacity (kg)

Wire Ø (mm)

YMA-TD56

560

300

0.60–1.60

YMA-TD63

630

350

0.70–2.50

YMA-TD80

800

1000

0.70–2.50

YMA-DT100

1000

2000

1.00–5.00

YMA-TD125

1250

3500

2.00–7.00

Spool/Coil Pay-Off Configurations

Machine type

Product type

Pay-off system

Uncoiling position

YMA-TD

Spool

Driven with dancer

Horizontal

YMA-SS

Spool

Undriven

Horizontal

DKA-TD

Coil

Driven, dancer and rotating table

Vertical

DKA-SS

Coil

Undriven with rotating table

Vertical

DSA-UA

Spool / carrier

Top opener with rotating arm

Vertical
