Spare Parts & Auxiliary Equipment For Wire Drawing Lines
Wire Pointing Machine
Catalog Request
Back to Products

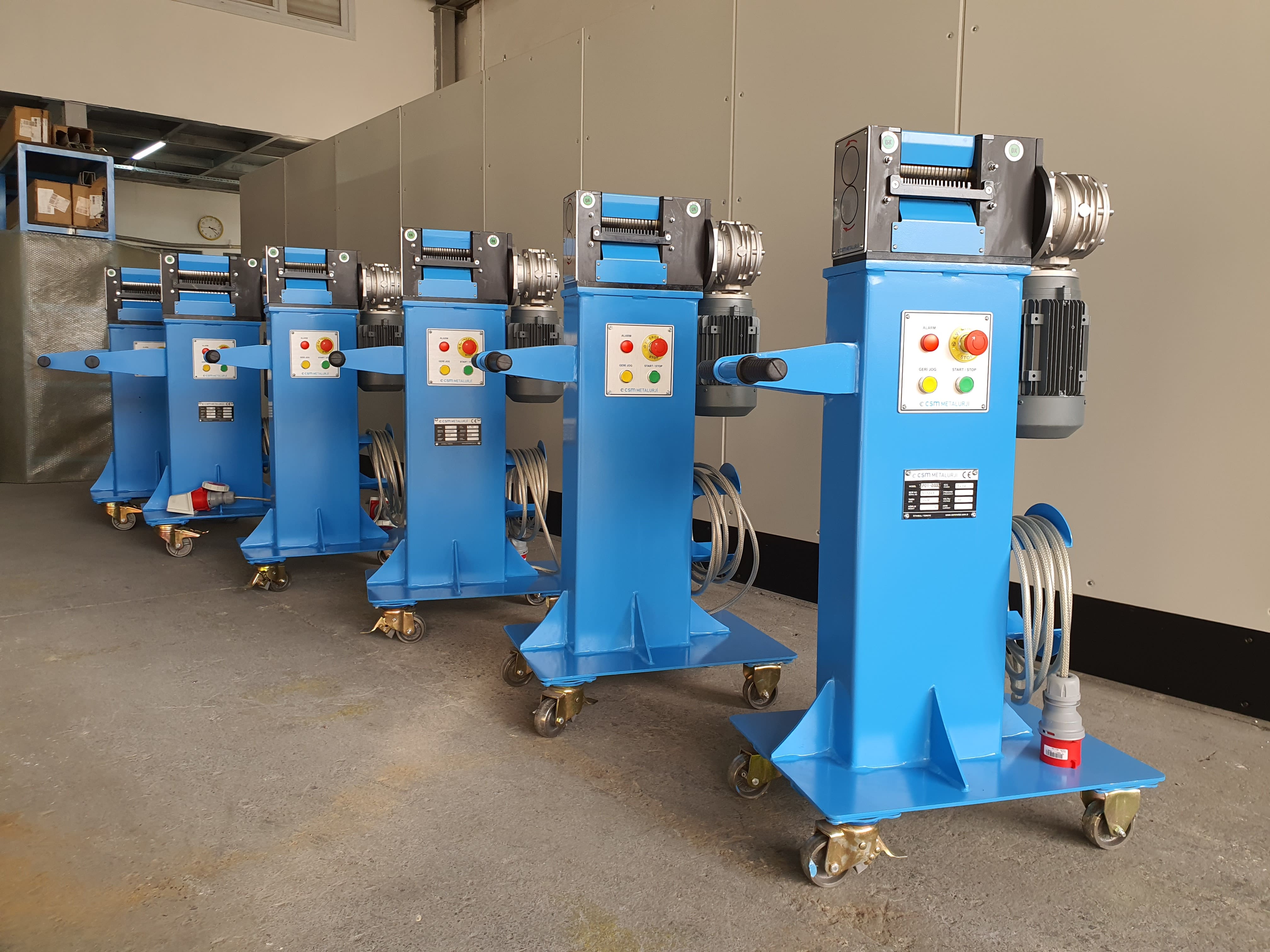

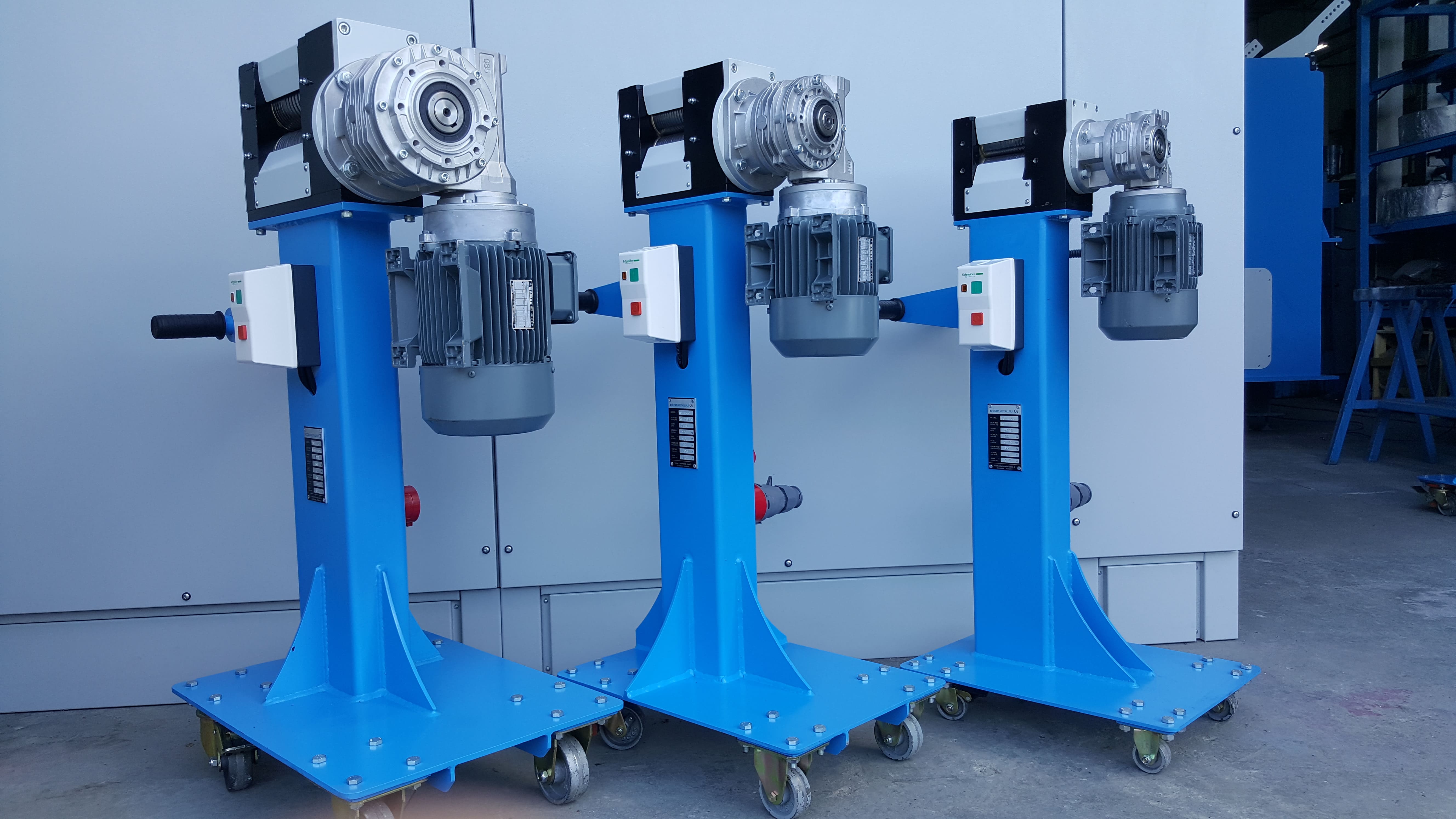

The wire pointing machine is designed to reduce the wire-end diameter in a controlled manner before drawing, allowing the wire to pass easily through the drawing dies. By bringing the wire end to the required diameter and shape, it shortens line preparation time, simplifies die threading, and helps reduce production downtime.

Thanks to its robust mechanical construction and precise operating system, the machine delivers reliable performance with different wire materials and diameters. Designed for continuous and intensive operation, it can be manufactured with customized solutions for different production capacities and process requirements.

Technic Information
Wire tensile strength WP01 capacity / model WP02 capacity / model WP03 capacity / model WP04 capacity / model
> 3000 N/mm² 0.80–3.00 mm / WP01-0830 1.20–5.00 mm / WP02-1250 2.00–7.00 mm / WP03-2070 3.00–9.00 mm / WP04-3090
Max. 3000 N/mm² 0.80–3.50 mm / WP01-0835 1.50–6.00 mm / WP02-1560 1.80–8.00 mm / WP03-1880 2.00–10.00 mm / WP04-20100
Max. 500 N/mm² 1.20–5.00 mm / WP01-1250 2.00–7.00 mm / WP02-2070 1.80–8.00 mm / WP03-1880 3.00–11.00 mm / WP04-30110
Technical specification WP01 WP02 WP03 WP04
Motor power 1.1 kW 1.5 kW 2.2 kW 3 kW
Number of rolls 2 2 2 2
Drum diameter Ø60 mm Ø60 mm Ø80 mm Ø90 mm
