Production Lines For Ribbed Mesh Wire
Mechanical Descalers
Catalog Request
Back to Products

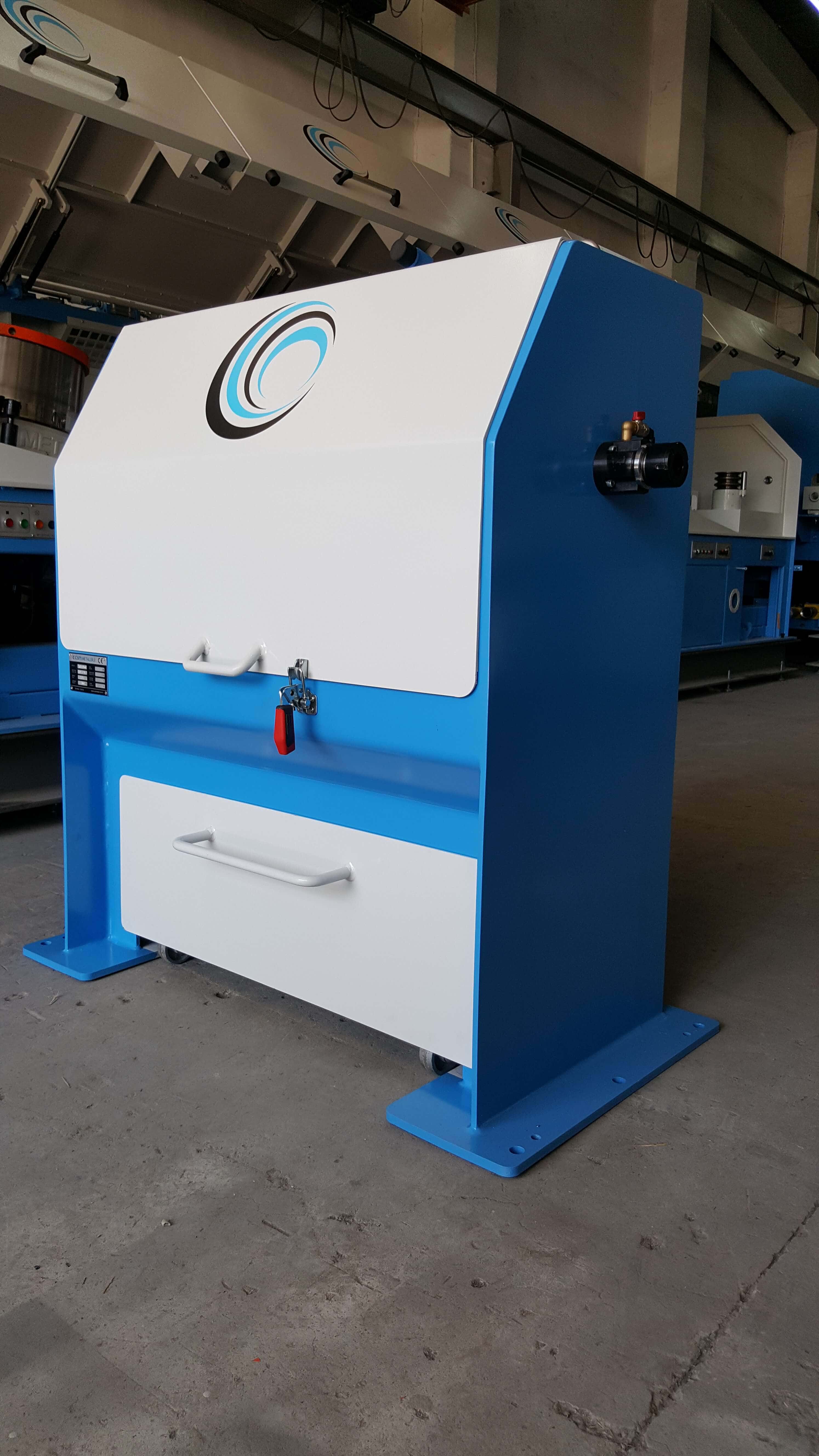

Mechanical descaling units are designed to mechanically break and remove the scale layer formed on the wire rod surface. They can be manufactured with different numbers of rollers according to the wire rod diameter and can be used for wire rods up to 12.00 mm in diameter. Depending on the requirement, the number of rollers can be applied up to 12.

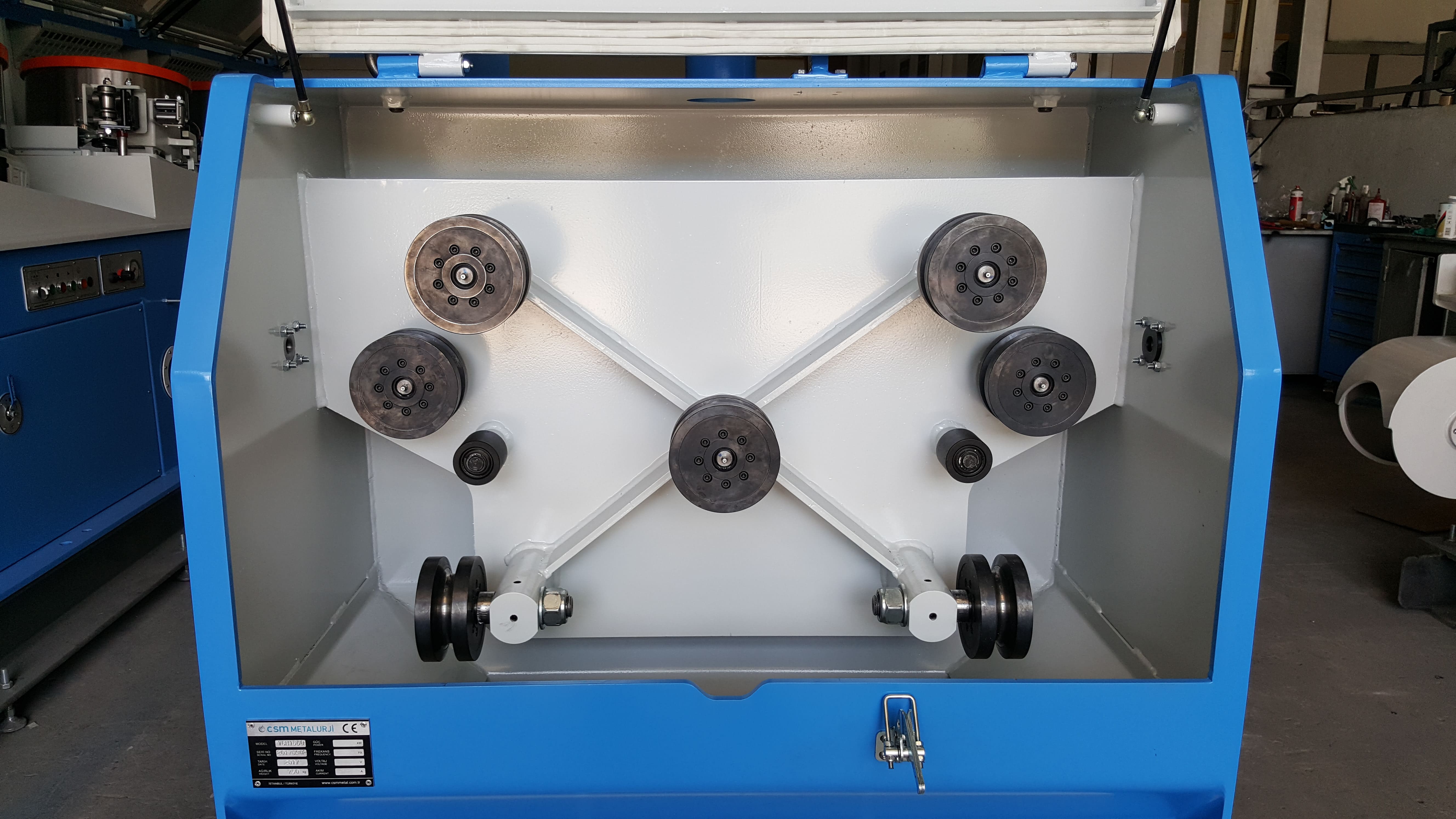

For large-diameter wire rods, hydraulic pressure ring systems are used. The rollers are designed with bearing-supported tungsten carbide rings and are mounted between two flanges.

The machine body includes a special outlet for the dust extraction system. A wheeled scale collection drawer is used to collect the removed scale. The protection covers are manufactured with rubber seals to ensure dust-tight operation.

An adjustable air nozzle is located at the machine outlet to clean fine scale dust remaining on the wire. Wear-resistant tungsten carbide die holders are used in the wire rod inlet and outlet channels.
